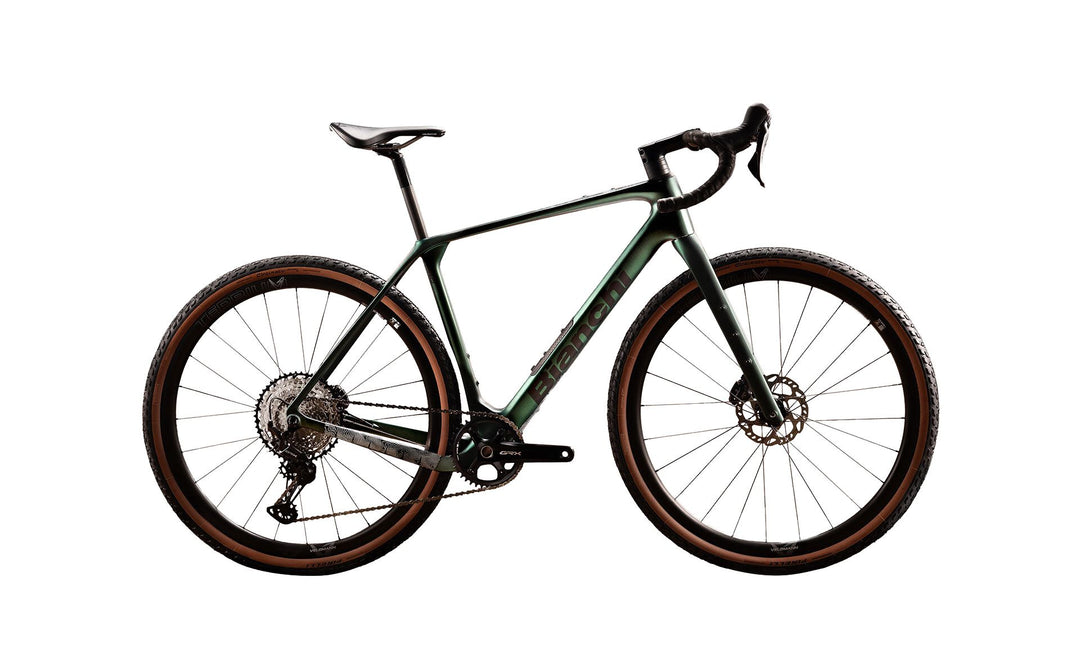

Bianchi Arcadex Pro GRX 820/822 1X12

The Bianchi Arcadex PRO GRX 820/822 Disc 1×12 at Freedom Machine Australia is a high-performance gravel bike designed for riders who seek speed, control, and adventure on mixed terrain. Built around a lightweight Arcadex PRO carbon frame, it combines stiffness and comfort with modern gravel geometry. The Shimano GRX 820 1×12 drivetrain, featuring a 40T crank and an 11–51T cassette, provides a wide range of gears for tackling steep climbs and fast descents. Powerful Shimano GRX 800 hydraulic disc brakes deliver reliable stopping power in all conditions, while Velomann Terbium carbon wheels and 45 mm Pirelli Cinturato Gravel tires ensure traction, stability, and tubeless-ready performance. With clean internal cable routing, a flared gravel handlebar for added control, and a sleek matte finish, the Arcadex PRO GRX is built for both endurance rides and off-road exploration.

SPECIFICATIONS

FRAME
Arcadex PRO carbon, flat‑mount disc brakes, BB86 PressFit, thru‑axles 12×142 mm, tire clearance up to 50 mm

FORK
Rigid carbon Arcadex fork, flat‑mount 140/160 mm, thru‑axle 12×100 mm

HEADSET
Bianchi Custom Acros ICR with internal cable routing

SHIFTERS
Shimano GRX 820 ST/BL

REAR DERAILLEUR
Shimano GRX 822 RD‑RX822, SGS

CRANKSET
Shimano GRX 820 FC‑RX820‑1, 40T (170–175 mm arm lengths per size)

BOTTOM BRACKET
Shimano SM‑BB72‑41B (PressFit)

CHAIN
Shimano CN‑M7100

CASSETTE
Shimano CS‑M7100‑12, 11–51T, MicroSpline

BRAKES
Shimano GRX 800 hydraulic disc, BR‑RX820

ROTORS
Shimano SM‑RT70 IceTech, Centerlock, 160 mm front & rear

WHEELS
Velomann Terbium carbon, tubeless-ready, 700C × 30 mm rim, 25 mm internal width

TIRES
Pirelli Cinturato Gravel M Classic, 45 mm tan sidewall

STEM
Velomann AICR alloy, –2° rise, length 80–120 mm by size

HANDLEBAR
Velomann Gravel ICR alloy, 16° flare, 130 mm drop, 70 mm reach; widths 400–440 mm

GRIPS/TAPE
Bianchi Hexagon tape, 2.5 mm thick

SEATPOST
Velomann carbon UD, Ø 27.2 mm; lengths vary by frame size

SADDLE
Velomann MITORA 149 H1, 149 × 250 mm, nylon‑carbon rails, ~230 g

IMPORTANT:

Before using this vehicle, check the appropriate local laws relating to your intended use of the vehicle on roads and road related areas.

Bikes that are shipped come partially assembled, while those picked up in-store are fully built.

Shipping prices are calculated at checkout.
