FATBOY Harlem

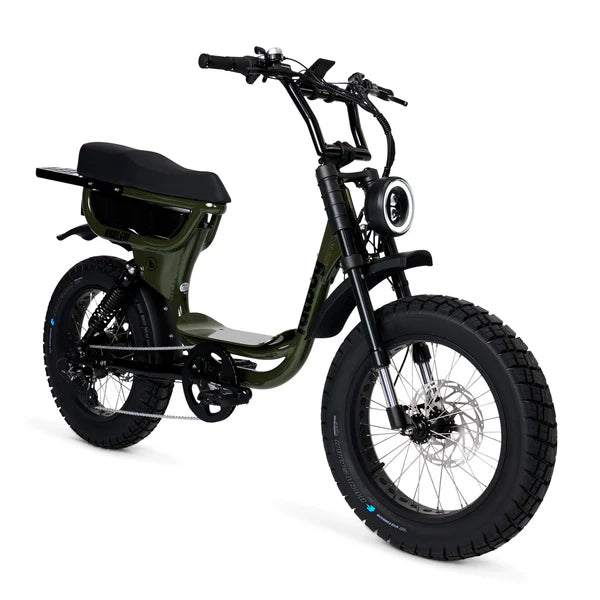

The Fatboy Harlem V2* is a step through two-seater eBike and comes standard with class leading features including BAFANG HUB Motor with peak power capability of 1560Watts, 1040Wh SAMSUNG Battery, 203mm TEKTRO Hydraulic Disc Brakes, 7 Speed Shimano Gearing, Super bright colour LCD Display, upgraded front suspension with 30mm more travel and rear adjustable motorcycle suspension, 2 seater gripper seat with rear passenger foot pegs, 180kg weight rating and finally our all inclusive 2 year warranty.

Fatboy Bikes are sold restricted to meet NSW legislation max continuous output 500watts at 25Km/h – see our FAQs for more info on Australian ebike laws

Fatboy Bikes speed can be derestricted for private property use only and must be restricted again when in public domain. Throttle is to be used on private property only and should be isolated in public domain.

The upgraded 52V system when compared to the 48V system provides plenty of extra torque and range. So strap yourself in folks the Fatboy Scrambler V2 two seater eBike has arrived.

Our Fatboy philosophy is simple – have fun, get outdoors, reduce your carbon footprint and feel the breeze on your knees. Do yourself a favour and jump on a Fatboy eBike today.

SPECIFICATIONS

MOTOR
52 V Bafang hub, 1560 W peak, ~500 W continuous

BATTERY
52 V 20 Ah Samsung (~1040 Wh), UL2271 compliant

CHARGE TIME
4–6 hr

MAX SPEED
25 km/h (public), up to 50–55 km/h (private)

ESTIMATED RANGE
90–100 km

TORQUE
100 Nm

ASSIST & THROTTLE
Cadence PAS + twist throttle with isolator

GEARS
Shimano 7-speed

DISPLAY
LCD color, USB charging, passcode, trip/ODO/range

BRAKES
203 mm Tektro hydraulic discs

SUSPENSION
Front (30 mm extra travel) + adjustable rear shock

FRAME
Step-through aluminium alloy

TYRES
20 × 4 in fat, puncture-resistant

WEIGHT CAPACITY
180 kg

BIKE WEIGHT
38 kg

IMPORTANT:

Before using this vehicle, check the appropriate local laws relating to your intended use of the vehicle on roads and road related areas.

Bikes that are shipped come partially assembled, while those picked up in-store are fully built.

Shipping prices are calculated at checkout.
